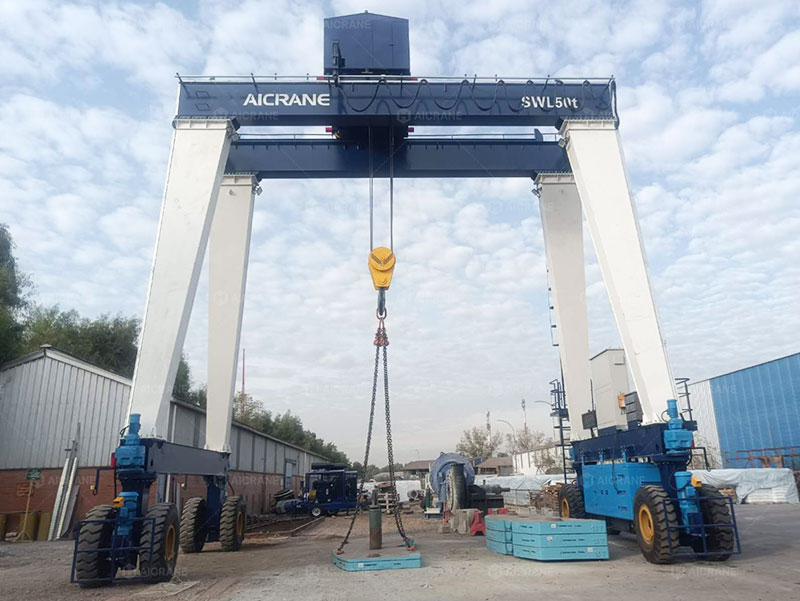

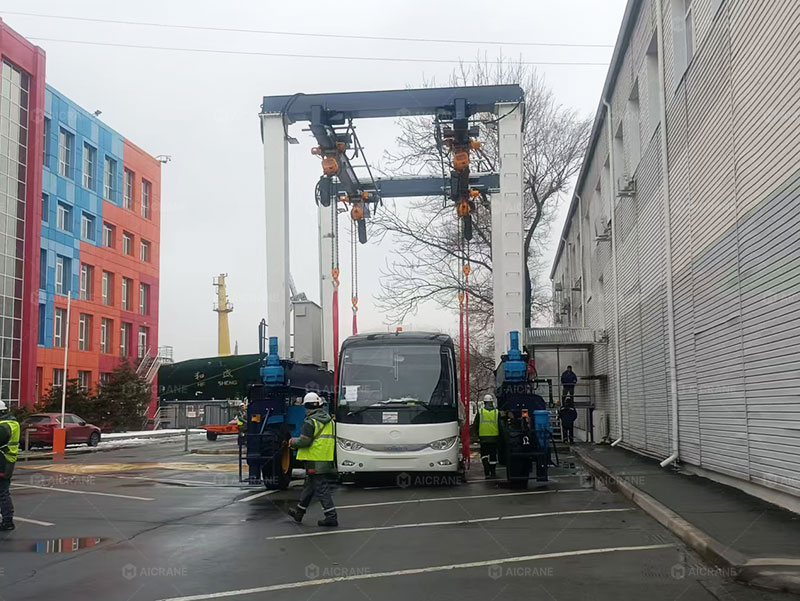

Rubber Tyred Gantry (RTG) cranes are indispensable in modern container terminals and industrial yards, providing the flexibility to handle heavy loads over large areas without being confined to a rail track. Unlike rail-mounted cranes, RTG cranes rely on large, durable rubber tyres for mobility, which directly affects their performance, safety, and operational efficiency. Proper maintenance of these tyres is critical for ensuring optimal crane mobility, minimizing downtime, and prolonging equipment life.
Understanding RTG Crane Tyres
RTG crane tyres are engineered to carry extremely heavy loads, often ranging from 40 to over 100 tons, depending on crane capacity. They are typically made from solid or pneumatic rubber compounds and designed to withstand high-pressure, high-friction, and harsh environmental conditions. Unlike standard industrial tyres, rubber tyred gantry crane tyres face unique stresses due to the combination of:
-
Heavy vertical loads from containers or industrial materials.
-
Lateral forces when turning or maneuvering.
-
Friction and heat buildup during extended operation.
-
Exposure to oils, chemicals, or extreme weather conditions.
Due to these demands, tyre maintenance is not just a matter of prolonging tyre life but a critical aspect of overall RTG crane operational efficiency.
Key Components of Tyre Maintenance
Effective tyre maintenance for RTG mobile gantry cranes involves several aspects, including inspection, cleaning, alignment, pressure management, rotation, and timely replacement. Each of these areas plays a vital role in preserving tyre integrity and ensuring smooth mobility.
1. Regular Tyre Inspection
Regular inspections are the first line of defence against tyre-related failures. Operators should check for:
-
Surface wear and tear: Uneven wear patterns may indicate alignment issues or improper load distribution.
-
Cracks or cuts: Sharp objects or debris in the operating area can cause surface damage.
-
Chunking or delamination: High-impact operations may cause pieces of the tyre to separate from the main body.
-
Sidewall deformation: Bulges or abnormal stretching can indicate internal structural damage.
Inspections should be conducted daily before operations and supplemented with more thorough weekly or monthly checks. Using visual inspections along with digital tyre monitoring tools can help detect early-stage issues that may not be visible to the naked eye.
2. Maintaining Proper Tyre Pressure
For pneumatic tyres, maintaining correct tyre pressure is crucial. Under-inflated tyres can cause excessive flexing, leading to overheating, premature wear, and reduced load capacity. Over-inflated tyres, on the other hand, can increase the risk of cracking and reduce traction, impacting mobility and safety. Regularly checking and adjusting tyre pressure according to manufacturer specifications ensures optimal load distribution and operational stability.
3. Alignment and Suspension Checks
Tyre alignment directly affects wear patterns and crane handling. Misalignment can lead to uneven tyre wear, increased rolling resistance, and difficulty maneuvering. Regularly checking the alignment and suspension system of rubber wheeled gantry cranes ensures tyres maintain proper contact with the ground, minimizing unnecessary wear and improving fuel efficiency or electric power consumption.
4. Cleaning and Surface Care
RTG cranes operate in container yards, shipyards, and industrial sites where tyres are exposed to dirt, debris, oil, and chemicals. Accumulation of debris between treads or on the tyre surface can reduce traction, accelerate wear, and damage the rubber. Routine cleaning with water, mild detergents, and scrubbing brushes prevents abrasive materials from compromising tyre performance. Special attention should be given to the tyre treads, grooves, and sidewalls.
5. Rotation and Load Distribution
Even though RTG crane tyres are designed to handle high loads, repeated operation in the same position can lead to uneven wear. Rotating tyres, if feasible, can help distribute wear more evenly and extend tyre life. Additionally, ensuring balanced load distribution during lifting and transport operations prevents excessive stress on specific tyres, maintaining even contact pressure and avoiding premature deformation.
6. Temperature Monitoring
Tyres generate heat during movement, and excessive temperatures can degrade rubber compounds, leading to cracks or blowouts. Temperature monitoring systems can alert operators to potential overheating issues. Regular rest periods and avoiding continuous high-speed operations on heavy loads can help manage tyre temperature and prevent long-term damage.
7. Timely Tyre Replacement
Despite rigorous maintenance, tyres will eventually reach the end of their service life. Indicators for replacement include:
-
Excessive wear beyond the recommended tread depth.
-
Multiple cuts, cracks, or structural damage.
-
Persistent sidewall deformities.
-
Reduced traction affecting gantry crane mobility.
Replacing tyres at the right time ensures uninterrupted operation and prevents accidents caused by sudden tyre failure. Solid tyres, while more durable, also require inspection for surface wear and chipping.
Safety Implications of Tyre Maintenance
Neglecting RTG crane tyre maintenance can lead to significant safety risks. Tyre failure may cause crane instability, sudden stopping, or difficulty maneuvering, all of which can lead to accidents, damage to containers, or injury to operators. By adhering to a strict maintenance schedule, operators not only extend the life of the tyres but also ensure a safe working environment for personnel.
Best Practices for Maximizing Tyre Life
-
Implement a tyre maintenance schedule: Daily inspections, weekly cleaning, and monthly pressure and alignment checks create a proactive maintenance culture.
-
Use manufacturer-approved tyres: Always use tyres specified for the RTG crane model to ensure load capacity, traction, and durability.
-
Train operators: Proper operation reduces sharp turns, sudden braking, and uneven loading, which directly affects tyre longevity.
-
Monitor environmental factors: Avoid operating over sharp debris, chemical spills, or extreme heat whenever possible.
-
Use digital monitoring systems: Advanced RTG cranes can be equipped with tyre pressure sensors and load monitoring systems to provide real-time feedback on tyre conditions.
Impact on RTG Crane Mobility and Efficiency
Well-maintained tyres contribute to smoother crane mobility, precise positioning, and efficient container handling. They reduce rolling resistance, improve fuel or energy efficiency, and minimize unexpected downtime. In terminals where turnaround time is critical, even minor tyre issues can lead to significant operational delays. Therefore, tyre maintenance is not merely a mechanical task but an essential part of overall operational efficiency.
Conclusion
Rubber tyres are the lifeline of RTG cranes, directly affecting mobility, safety, and efficiency. Regular inspection, proper pressure management, alignment, cleaning, rotation, and timely replacement form the foundation of effective tyre maintenance. By adhering to these practices, operators can maximize tyre life, enhance crane performance, and ensure uninterrupted operations in demanding industrial environments. Investing time and resources in tyre maintenance not only protects the equipment but also safeguards operators and cargo, contributing to long-term operational success.
